Spool dimensions

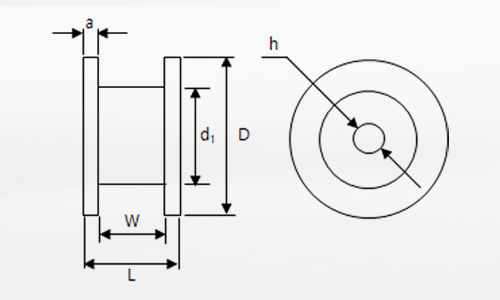

| Spool Number | D | d1 | L | W | a | H |
| P3 | 130 | 80 | 110 | 90 | 10 | 20 |
| P5 | 160 | 90 | 114 | 90 | 12 | 20 |
| P10 | 200 | 90 | 134 | 110 | 12 | 25 |
| P20 | 250 | 110 | 140 | 110 | 15 | 34 |
| D125 | 125 | 80 | 125 | 100 | 12.5 | 16 |
| D160 | 160 | 100 | 100 | 128 | 16 | 22 |
Spool dimensions
